ISP stands for Image Signal Processor. It is a dedicated processor or hardware IP core that performs a series of processing including noise reduction, white balance, color correction, and demosaicing on the RAW data output from image sensors, ultimately generating high-quality digital images.

With the advent of the artificial intelligence (AI) era, vision has become increasingly important. ISP is no longer only integrated into traditional image DSP, IPC SoC, and AI CIS chips; it is also being integrated into various chips such as AI SoC, WIFI/BLE SoC, AR/VR, MPU, and MCU.

About GenesysLogic ISP

GenesysLogic's ISP supports 12-bit RAW, RGB, and YUV data processing, with a maximum resolution of 4K at 30fps. In addition to standard pipeline processing, it features HDR and 2D/3D noise reduction, meeting the integration design requirements of most chips.

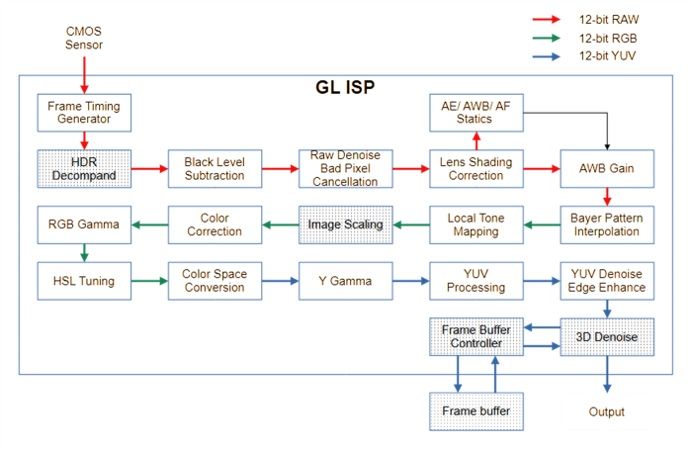

Basic Processing Flow

1. Gr/Gb Balance
2. Black Level Subtraction and Digital Gain
3. Raw Denoise & Bad Pixel Cancellation
4. Lens Shading Correction, LSC
5. AF/ AE / AWB Statistics
6. AWB Gain
7. Bayer Pattern Interpolation/ Demosaicing
8. RGB Gamma Correction
9. Color Correction & Color Space Conversion
10. Y Gamma Correction
11. YUV Processing
12. YUV Denoise & Edge Enhancement


Optional Processing Features

1. HDR De-companding
2. Image Scaling / Scale Down
3. HSL Tuning
4. 3D Denoise

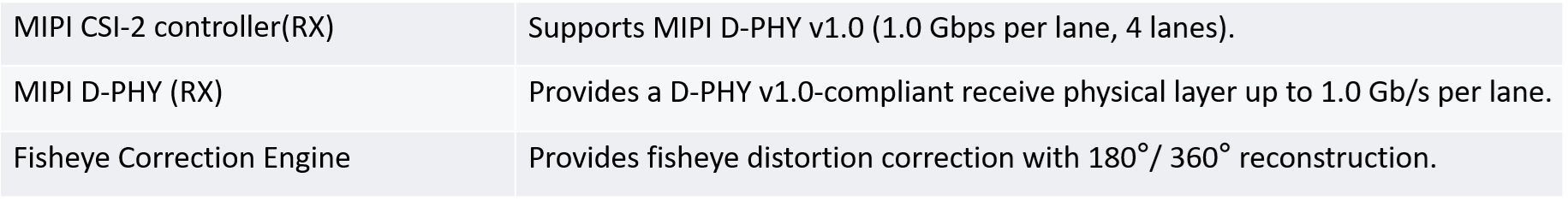

In addition to ISP, GL Technology offers a complete image processing suite, including MIPI CSI-2 controller, MIPI RX D-PHY IP, and Fisheye Correction Engine.
