Highlights
  • Designed for TSMC 22nm/55nm process node
  • Supports SuperSpeed 20/10/5 Gbps data rate and is backward compatible with USB2.0 data rates
  • Interges high-speed and mixed-signal circuitry designed to PIPE and UTMI+ specifications
  • Can be used in USB Device, Hub and Host applications
  • Supports the USB Type-C connector standard
  • Designed for easy integration with GL USB3.2 building blocks/ controllers
Target applications Techonology
  • TSMC 22nm/55nm process
Overview
The GL USB3.2 PHY IP provide designers with a complete physical (PHY) layer IP solution for consumer applications such as digital cameras, edge devices, media players and other consumer electronics requiring high-throughput USB capabilities. The GL USB3.2 PHY IP also supports the reversible USB Type-C connector. The GL USB3.2 PHY IP offers a small die size with low power consumption.
The GL USB3.2 PHY IP implement the latest USB-C specifications from the USB Implementer’s Forum (USB-IF). Architected for the industry’s most advanced 0.9V process technologies, the GL USB3.2 PHY IP are designed with features created to minimize effects due to variations in foundry process, device models, packages, and board parasitics. The GL USB3.2 PHY IP build on years of customer success with GL’s silicon-proven GL USB3.2 product line, which has been ported to many process nodes. When combined with GL’s digital  controllers and building blocks, the GL USB3.2 PHY IP provides a complete solution for low- power, small die area requirements in advanced system-on-chip (SoC) designs.



Key Features
  • GL USB3.2 PHY IP supports USB Type-C reversible connectors

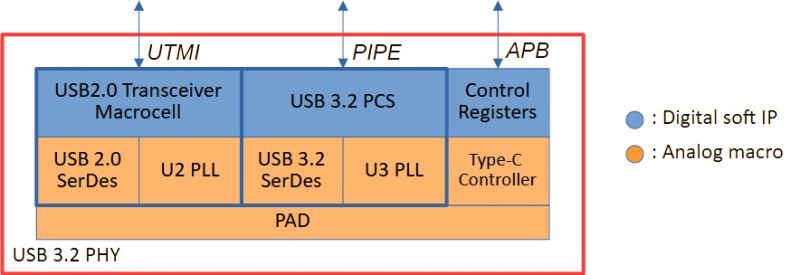

  • Integrated includes transmitter, receiver, regulator, PLL, digital core, and ESD I/O pads in PHY hard macro
  • Built-In Self-Test (BIST) features for efficient production testing and debug capabilities
USB 3.2 Features
  • 20 Gbps SuperSpeed data transmission rate
  • PIPE-compliant SuperSpeed USB 3.2 transceiver interface
  • Supports SuperSpeed power save modes U1, U2, and U3
USB 2.0 Features
  • 480 Mbps High-Speed, 12 Mbps Full-Speed, and 1.5 Mbps Low-Speed data rate
  • UTMI+ interfaces
  • Supports suspend, resume, and remote wakeup
