USB4 PHY
  1. HOME
  2. SILICON IP
  3. Interface IP
Highlights
  • Designed for TSMC 22nm process node
  • Supports 40 Gbps data rate and is backward compatible with USB3.2 data rates
  • Integers high-speed and mixed-signal circuitry designed to PIPE specifications
  • Can be used in USB Device, Hub and Host applications
  • Supports the USB Type-C connector standard
  • Designed for easy integration with GL USB4 building blocks/ controllers
Target applications
  • Consumer electronics
  • Edge devices
  • All products related to USB SerDes
Technology
  • TSMC 22nm process
Overview
The GL USB4 PHY IP provide designers with a complete physical (PHY) layer IP solution for consumer applications such as digital cameras, edge devices, media players and other consumer electronics requiring high-throughput USB capabilities. The GL USB4 PHY IP also supports the reversible USB Type-C connector. The GL USB4 PHY IP offers a small die size with low power consumption.
The GL USB4 PHY IP implement the latest USB-C specifications from the USB Implementers Forum (USB-IF). Architected for the industry’s most advanced 0.9V process technologies, the GL USB4 PHY IP are designed with features created to minimize effects due to variations in foundry process, device models, packages, and board parasitic. The GL USB4 PHY IP build on years of customer success with GL’s silicon-proven GL USB4 product line. When combined with GL’s digital controllers and building blocks, the GL USB4 PHY IP provides a complete solution for low- power, small die area requirements in advanced system-on-chip (SoC) designs.




Key Features
  • GL USB4 PHY IP supports USB Type-C reversible connectors

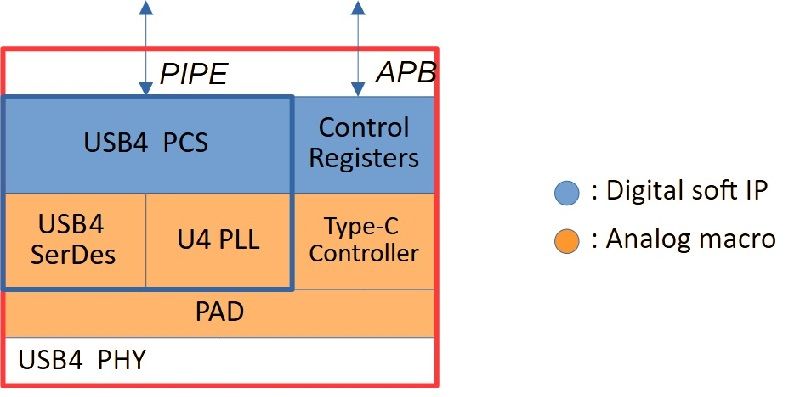

  • Integrated includes transmitter, receiver, regulator, PLL, digital core, and ESD I/O pads in PHY hard macro
  • Built-In Self-Test (BIST) features for efficient production testing and debug capabilities
USB4 Features
  • 40 Gbps data transmission rate
  • PIPE-compliant USB4 transceiver interface
  • Supports power save modes
